Siemens SIPROTEC 5 Protection Relays – Next-Generation Modular Protection Platform

Siemens SIPROTEC 5 Protection Relays – Next-Generation Modular Protection Platform

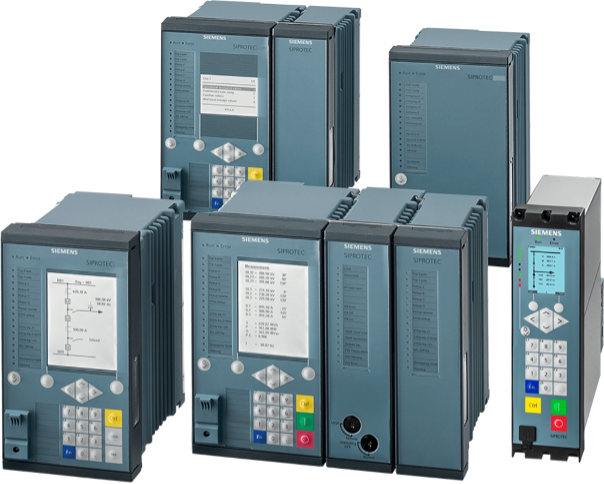

Siemens SIPROTEC 5 represents the latest generation of numerical protection, control, automation, and monitoring devices developed by Siemens. Designed specifically for the challenges of modern power systems, including the integration of renewable energy sources and the requirements of smart grids, SIPROTEC 5 delivers a highly flexible and future-proof solution for medium, high, and extra-high voltage applications.

Unlike previous generations, SIPROTEC 5 is built on a fully modular hardware and software architecture. This design allows each relay to be precisely configured according to the needs of the specific application, helping to reduce initial investment costs, minimize spare parts inventory, and lower overall lifecycle expenses while improving system availability.

Modular Architecture and Flexibility

One of the defining characteristics of SIPROTEC 5 is its modular concept. Hardware modules for input/output, communication, and specialized functions such as arc protection can be combined flexibly across the entire device family. This interchangeability simplifies engineering and allows users to standardize on a common platform while still meeting diverse protection requirements.

The software architecture is equally modular. Protection functions, automation logic, and communication services can be activated or expanded as needed. This approach ensures that the relay can grow with the evolving needs of the power system without requiring hardware replacement.

Advanced Technical Capabilities

SIPROTEC 5 introduces several important technical advancements:

• IEC 61850 Edition 2 Support: The series provides native support for both station bus and process bus communication according to IEC 61850-8-1 and IEC 61850-9-2. Siemens was the first manufacturer to receive the IEC 61850 Edition 2 Certificate Level A¹, confirming its leadership in substation automation standards.
• Integrated Phasor Measurement Unit (PMU): Many devices include built-in synchrophasor measurement according to IEEE C37.118, enabling wide-area monitoring and improved grid stability analysis.
• Wide Frequency Tracking: Protection functions remain accurate across a frequency range of 10 Hz to 80 Hz. This capability is particularly valuable in networks with high penetration of renewable energy sources where frequency variations can be significant.
• Advanced Cybersecurity: The platform incorporates comprehensive security features, including role-based access control (RBAC), signed firmware, TLS encryption, and IEEE 802.1X network authentication, helping utilities meet increasing cybersecurity requirements.
• Process Bus Readiness: Direct connection to merging units and support for sampled values allow for fully digital substation architectures.

Engineering and Digital Tools

SIPROTEC 5 is supported by a complete set of modern engineering and diagnostic tools. DIGSI 5 serves as the central engineering software, providing an intuitive interface for configuration, testing, and maintenance. The SIPROTEC DigitalTwin enables virtual testing of relay behavior before physical commissioning, reducing risks and project timelines.

Additionally, the platform offers IoT and cloud connectivity through the OPC UA PubSub protocol. This allows direct integration with cloud platforms such as Siemens MindSphere and supports advanced monitoring applications through the SIPROTEC Dashboard.

Main Device Families in SIPROTEC 5

The SIPROTEC 5 portfolio covers a wide range of protection and control applications:

• Overcurrent and Feeder Protection: Devices such as 7SJ81, 7SJ82, and 7SJ85 provide directional and non-directional overcurrent protection along with earth fault and thermal overload functions.
• Distance Protection: The 7SA82, 7SA86, and 7SA87 models deliver high-speed distance protection with teleprotection schemes and automatic reclosing.
• Line Differential Protection: Models including 7SD82, 7SD86, and 7SD87 offer selective protection for overhead lines and cables with charging current compensation.
• Transformer Differential Protection: The 7UT82 to 7UT87 series provides fast and reliable differential protection for two-winding and multi-winding transformers.
• Motor and Generator Protection: Specialized devices such as 7SK82, 7SK85, and 7UM85 ensure comprehensive protection for rotating machines.
• Busbar Protection: The 7SS85 offers distributed busbar differential protection with high speed and selectivity.
• Bay Controllers and Merging Units: Devices like 6MD85, 6MD86, and 6MU85 support advanced control and process bus applications.

Benefits for Modern Power Systems

Siemens SIPROTEC 5 is particularly well suited for today’s evolving power grids. Its wide frequency range, integrated PMU functionality, and strong cybersecurity features address the specific challenges created by renewable energy integration and digital substation architectures. The modular design also supports long-term standardization across different voltage levels and applications, simplifying training and maintenance for operating personnel.
