Siemens SIPROTEC 4 Protection Relays – Proven Numerical Protection Technology

Siemens SIPROTEC 4 Protection Relays – Proven Numerical Protection Technology

Siemens SIPROTEC 4 is one of the most successful and widely deployed families of numerical protection relays in the world. With more than one million devices installed across power generation, transmission, and distribution networks, the SIPROTEC 4 series has established itself as a reliable and versatile platform for medium and high voltage applications.

This series integrates protection, control, measurement, and automation functions into a single compact device. It was developed to meet the increasing demands of modern power systems while maintaining the high reliability that utilities and industrial users expect from Siemens protection technology.

Core Design Philosophy of SIPROTEC 4

The fundamental strength of SIPROTEC 4 lies in its “one feeder – one relay” concept. Instead of using multiple separate devices for protection, control, and monitoring, a single SIPROTEC 4 relay can perform all these tasks. This approach significantly reduces engineering effort, wiring complexity, and panel space requirements.

All devices in the series are built on a common hardware and software platform. This uniformity simplifies training, spare parts management, and system maintenance. The relays are designed according to IEC 61850 standards and support GOOSE messaging, enabling fast and reliable communication between intelligent electronic devices in substation automation systems.

Key Technical Features

SIPROTEC 4 relays offer several advanced technical capabilities:

• Integrated Protection and Control: Each device combines multiple protection functions with bay control, measurement, and automation logic in one unit.
• Powerful CFC Logic: The Continuous Function Chart (CFC) tool allows users to create custom automation and interlocking schemes without requiring external programmable logic controllers.
• Comprehensive Fault Recording: The relays can record analog and binary signals for several seconds. This feature is particularly useful for post-fault analysis and protection coordination studies.
• Self-Monitoring System: Continuous supervision of hardware, software, current and voltage transformer circuits, and trip coil circuits ensures high availability and early detection of potential problems.
• Flexible Hardware Design: Available in 1/3, 1/2, and 1/4 of 19-inch housings. Some models feature withdrawable designs and detachable operator panels, making maintenance and testing more convenient.

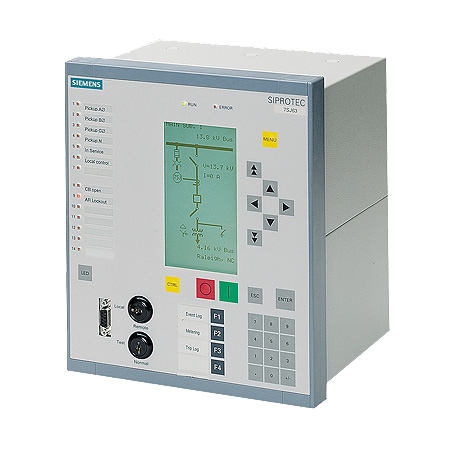

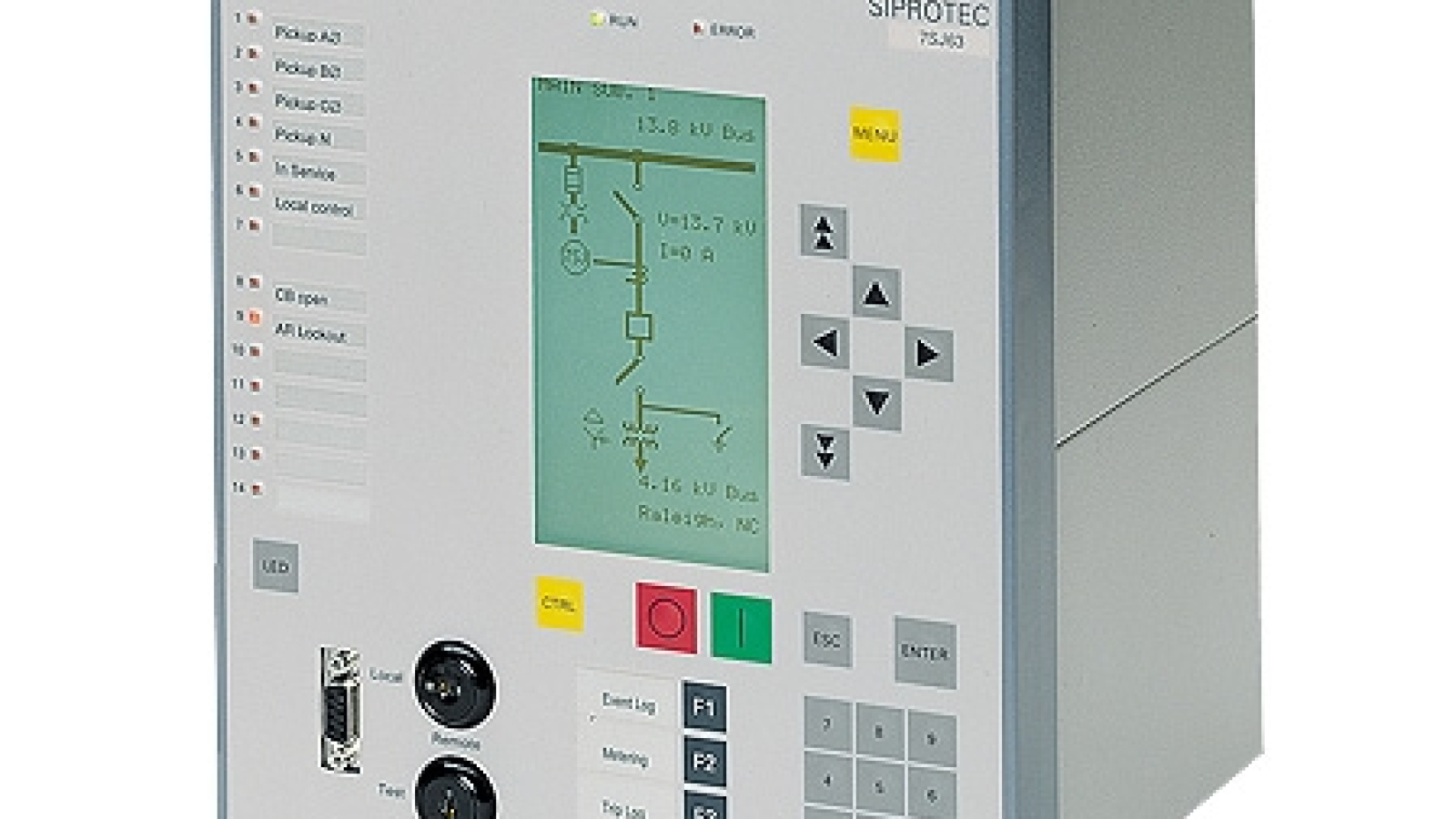

• User-Friendly HMI: The local interface includes a backlit LCD display, freely assignable LEDs, function keys, and a numerical keypad. This allows operators to perform many tasks without connecting a laptop.

Popular Models in the SIPROTEC 4 Family

The SIPROTEC 4 series includes several specialized models for different applications:

• 7SJ61, 7SJ62, 7SJ63, 7SJ64, and 7SJ66: These are multifunction feeder and motor protection relays widely used for overcurrent, earth fault, and thermal protection.
• 7SA6 and 7SA522: Distance protection relays designed for overhead lines and cables, offering fast and selective fault clearance.
• 7UT6 Series: Transformer differential protection relays that can also be applied for generator, motor, and busbar differential protection.
• 7UM61 and 7UM62: Specialized generator and motor protection relays with comprehensive functions for synchronous machines.

These models cover the majority of protection requirements in medium and high voltage networks while maintaining consistent engineering and communication interfaces.

Engineering and Configuration with DIGSI 4

One of the major advantages of the SIPROTEC 4 platform is the DIGSI 4 engineering software. This powerful tool provides a unified environment for parameter setting, logic programming, testing, and fault analysis. Engineers can manage the entire protection system from a single software platform, which improves efficiency and reduces the risk of configuration errors.

The software also supports four independent setting groups that can be switched locally or remotely. This feature is particularly useful in networks with changing operating conditions or seasonal load variations.

Communication Capabilities

SIPROTEC 4 relays support a wide range of communication protocols, including IEC 61850 (Edition 1 and 2), IEC 60870-5-103, PROFIBUS DP, Modbus RTU, and DNP 3.0. The communication modules are interchangeable, allowing users to adapt or upgrade the communication interface according to project requirements without replacing the entire relay.

This flexibility has made SIPROTEC 4 a popular choice for both new substations and retrofit projects where integration with existing systems is necessary.

Why SIPROTEC 4 Remains a Trusted Choice

Although newer platforms such as SIPROTEC 5 have been introduced, the SIPROTEC 4 series continues to be widely used due to its proven field performance, extensive application experience, and long-term availability of spare parts. Many utilities and industrial users continue to standardize on SIPROTEC 4 for medium voltage applications because of its reliability, ease of engineering, and cost-effectiveness.

The combination of robust hardware, comprehensive protection functions, and powerful engineering tools has made Siemens SIPROTEC 4 a benchmark in numerical protection technology for more than two decades.
